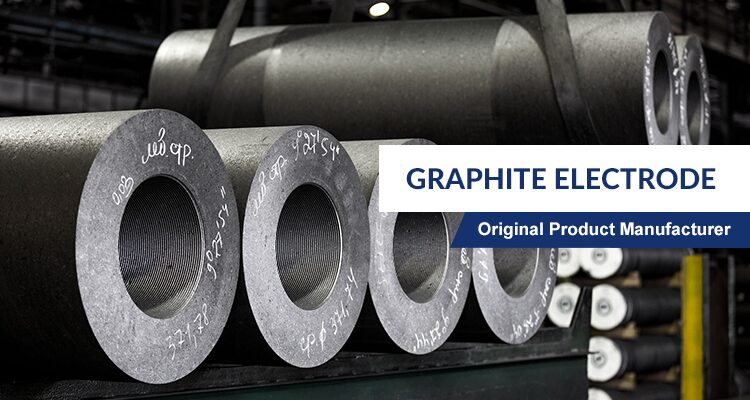

Product Description

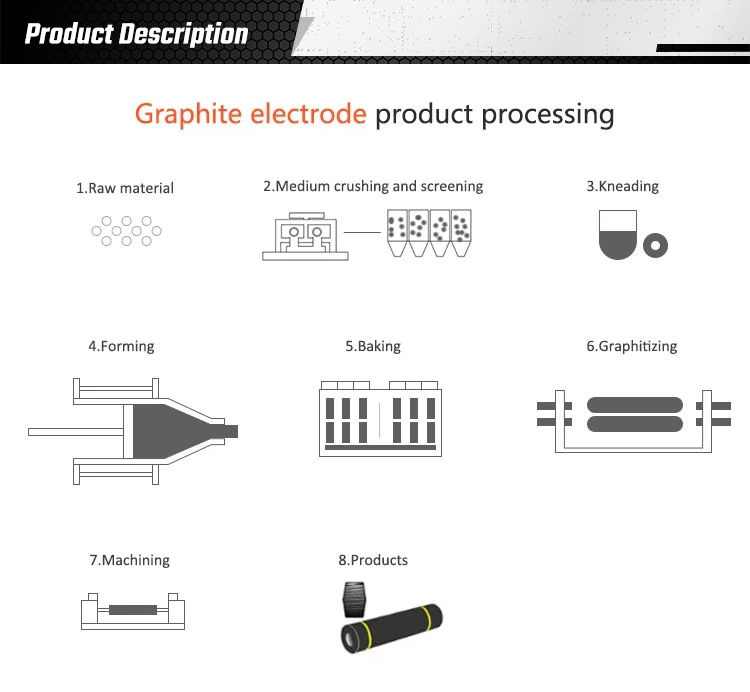

Description of Graphite Electrode Graphite Electrode is made of high-quality low ash materials, such as petroleum coke, needle coke and coal pitch.after calcining,burdening,kneading,forming,baking and pressure impregnation, graphitization and then precision machined with professional CNC machining.such of the products own characteristics with low resistivity, good electrical conductivity ,low ash, compact structure,good anti oxidation and high mechanical strength, Widely used in LF, EAF for steel making industry, Non-ferrous industry, silicon and phosphorus industry.so it is the best conductive material for electric arc furnace and smelting furnace. Advantages of Graphite Electrode Our graphite electrodes are with low electric resistance, high density, high anti-oxidation capability, precise machining accuracy, especially with low sulphur and low ash will not give steel second time.

1. Low electric resistance
2. High density
3. Good electrical conductivity
4. High anti-oxidation capability
5. Precise machining accuracy
6. Low sulphur and low ash, not give steel second time impurity

Diameter of electrodes: from 75 to 800mm. We can produce various specifications in accordance with customer requirements. Our advantages: Manufacturer from China; Buy directly from the factory; High-quality products; Profitable price.

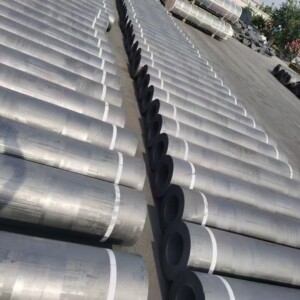

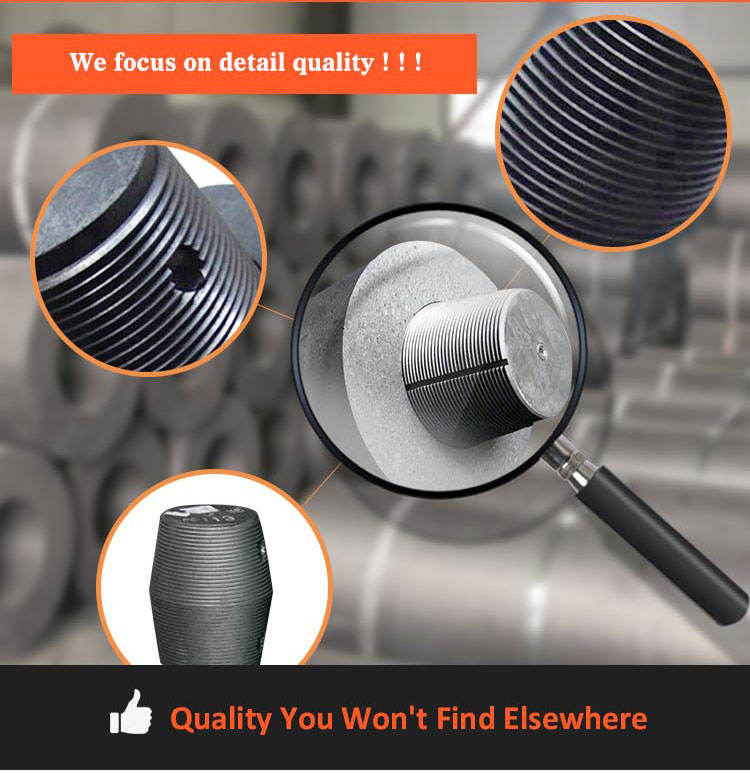

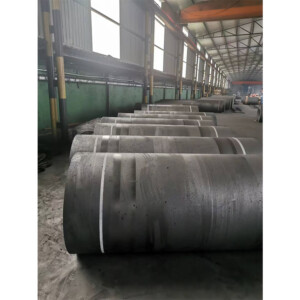

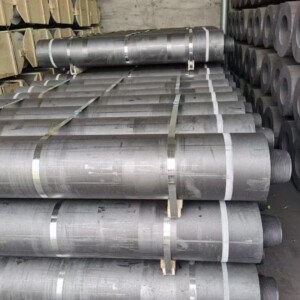

Product show



Product Application

Graphite Electrode Application 1 for EAF arc furnace; 2 for ore-thermal furnace; for the resistance furnace; 3 for the production of profiled graphite products; 4 for the production of shaped graphite products.

Specification

Nominal Diameter		Actual Diameter			Length (mm)	Tolerance
MM	Inch	Poppy	Mines	The Minimum Size Of The Black Part		Length	Short Length
75	3	78	73	72	1400/1600	± 100	-275
100	4	103	98	97	1400/1600
130	5	132	127	126	1400
150	6	154	149	146	1400/1600/1800
175	7	180	174	172	1400/1600
200	8	205	200	197	1600/1800
225	9	230	225	222	1600/1800
250	10	255	251	248	1600/1800
300	12	307	302	299	1600/1800/2000
350	14	357	352	349	1600/1800/2000
400	16	409	403	400	1600/1800/2000/22000
450	18	460	454	451	1600/1800/2000/22000
500	20	511	505	502	1600/1800/2000/22000
550	22	562	556	553	1800/2000/2200/2400
600	24	613	607	604	2000/2200/2400/2700
650	26	663	659	656	2000/2200/2400/2700
700	28	714	710	707	2000/2200/2400/2700

Technical Characteristics of Graphite Electrode RP, HP, UHP

Name		Unit	Nominal Diameter
			UHP Ultra-High-Power		HP Superstrong		RP Conventional Power
			≤Φ400	≥Φ450	≤Φ400	≥Φ450	≤Φ300	≥Φ350
Resistivity	Electrode	ΜΩ · m	≤5.5		≤6.5		≤8.5
	Nipple		≤4.5		≤5.5		≤6.5
Flexural Strength	Electrode	MPa	≥11.0		≥10.5	≥9.8	≥8.5	≥7.0
	Nipple		≥20.0		≥16.0		≥15.0
Elastic Modulus	Electrode	GPa	≤14.0		≤12.0		≤9.3
	Nipple		≤18.0		≤16.0		≤14.0
Density	Electrode	g / cm3	≥1.66	≥1.67	≥1.62	1.6	≥1.53	≥1.52
	Nipple		≥1.75		≥1.73		≥1.69
Coefficient Of Thermal Expansion	Electrode	10-6 / ºC	≤1.5		≤2.4		≤2.9
	Nipple		≤1.4		≤2.2		≤2.8
ASH		%	≤0.3		≤0.3		≤0.5
Note: 1.Koeffitsient ash content and thermal expansion as the reference index, the coefficient of thermal expansion (100 ºC ~ 600 ºC), Custom manufacturing.

Technical Characteristics of High Density Graphite Electrode (HD)

Name		Unit	Nominal Diameter
			75-200 mm		250-300mm		400-500mm
			top grade	first grade	top grade	first grade	top grade	first grade
Resistivity (Not More Than)	Electrode	ΜΩ · m	8.0	9.0	8.0	9.0	8.0	9.0
	Nipple		7.5		7.5		7.5
Flexural Strength(not less than)	Electrode	MPa	10		9		8
	Nipple		13		13		13
Elastic Modulus(no more)	Electrode	GPa	12		12		12
	Nipple		14		14		14
Density(not less than)	Electrode	g / cm3	1.58		1.58		1.58
	Nipple		1.68		1.68		1.68
Coefficient Of Thermal Expansion (No More)	Electrode	10-6 / ºC	2.7.		2.7.		2.7.
	Nipple		2.5		2.5		2.5
Ash Content (not more than)		%	0.3		0.3		0.5
Note: 1. The coefficient of ash content and thermal expansion as a reference index.

Technical Characteristics of a Quasi-Superhigh-Gauge Graphite Electrode (EGPK-SHP)

Name		Unit	Nominal Diameter (mm)
			300, 350, 400	450, 500
Resistivity (not more than)	Electrode	ΜΩ · m	6.2	6.5
	Nipple		5.5	5.5
Flexural Strength(not less than)	Electrode	MPa	10.5	10
	Nipple		16	16
Elastic Modulus(no more)	Electrode	GPa	14	14
	Nipple		18	18
Density(not less than)	Electrode	g / cm3	1.65	1.64
	Nipple		1.72	1.7
Coefficient Of Thermal Expansion (no more)	Electrode	10-6 / ºC	1.5	1.5
	Nipple		1.4	1.4
Ash Content (not more than)		%	0.3	0.3
Note: 1. Zonality as a reference index.

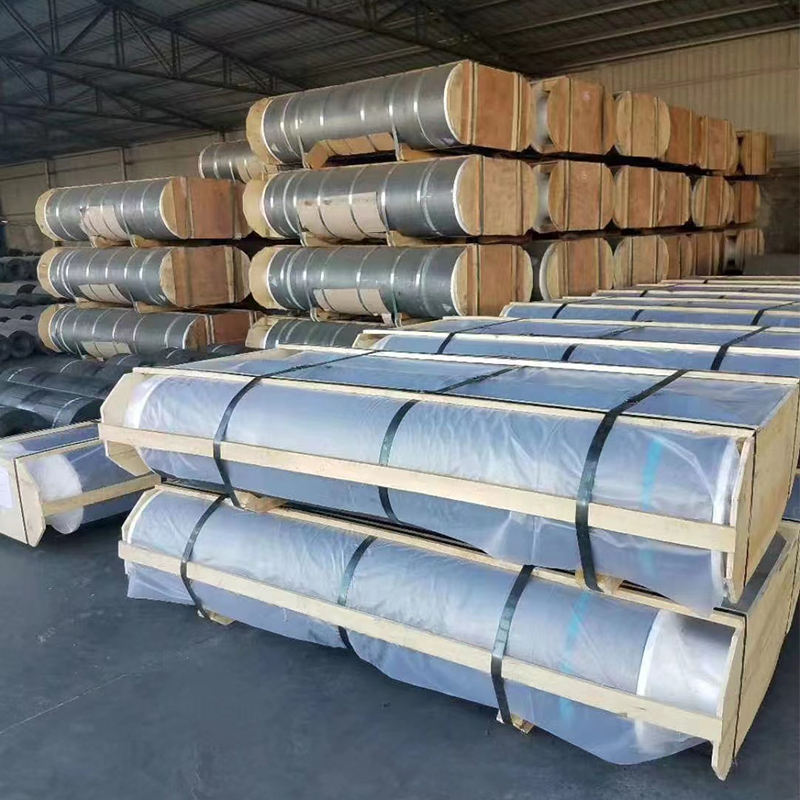

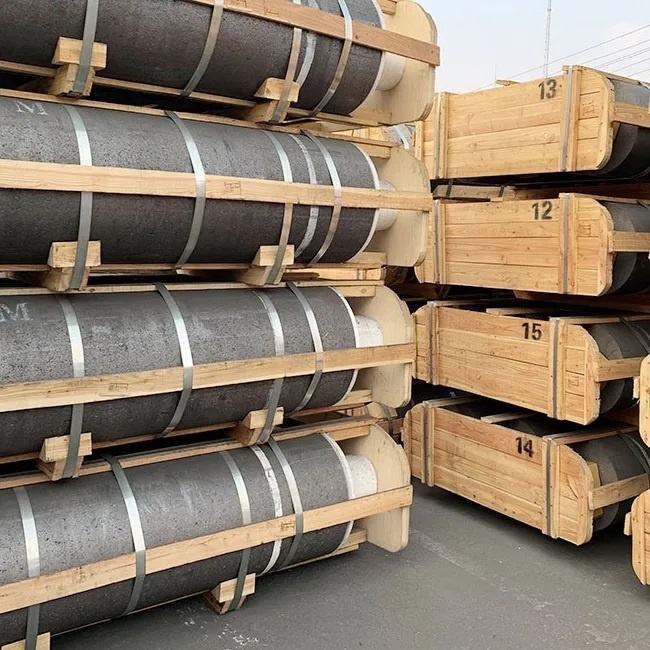

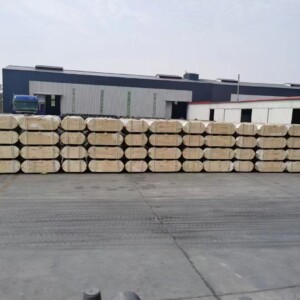

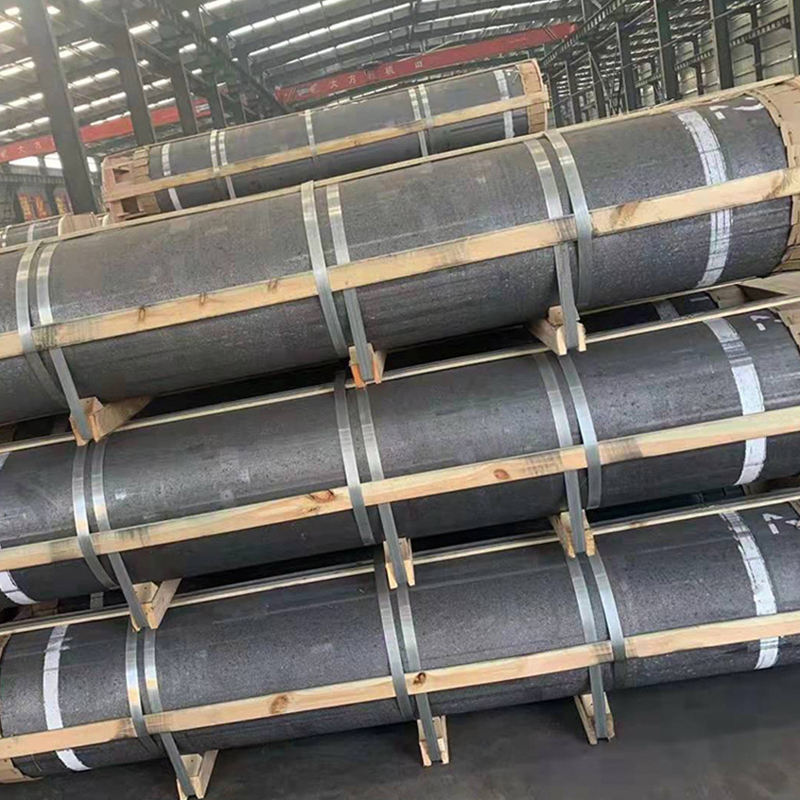

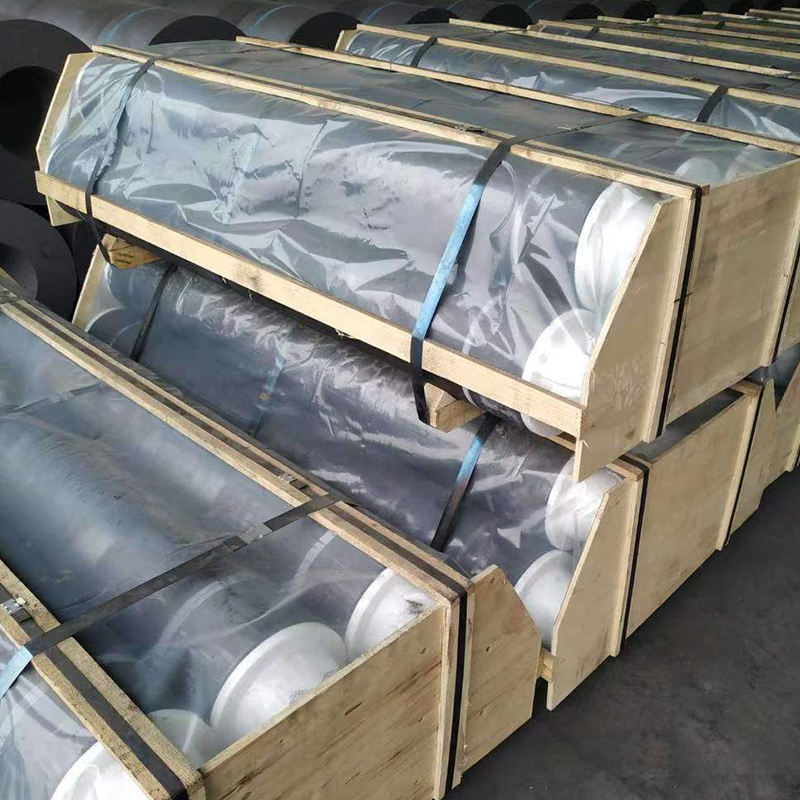

Packing & Delivery

Company Profile

Hebei Jin'ao Trading Co., Ltd has professional sales and after-sale service team who provide customers all-around service about product application, construction installation and operation technology training etc. Now we have established cooperation relationship with many science and research unit and our products have been sold to Iran, Indonesia,Kazakhstan and Egypt etc. Our advantages: Manufacturer from China; Buy directly from the factory; High-quality products; Profitable price.

FAQ

Q1.Are you the manufacturer or trading company? A: We are the manufacturer,our factory is located In handan, Hebei Province.We not only can produce the high quality products with the best price,but also can offer the best Pre-Sale Service and After-Service. Welcome to visit us any time. Q2.What kind of product can you offer? A: Our company can offer a series products for steelmaking and casting. For example:UHP, HP, and RP grades graphite electrodes, different size carbon raiser, graphite powder and cathode carbon block etc. Q3.Can your company provide samples and can visit to your factory? A: Of course,samples are available,and welcome to visit our factory anytime,we will arrange professional reception personnel to patiently answer any questions you might have. Q4.Why choose you over other suppliers? A: We have more than 15 years of experience in graphite electrodes in China, we have a large scale, strong strength & rich experience, professional technology and perfect customer service, also we have obtained various certifications, such as CE/ISO9001/ISO45001 etc. Q5. Do you accept OEM & ODM? A: Yes, we support OEM & ODM. Q6. How long is delivery time? A: The delivery time usually depends on the order quantity, usually about 7-12 working days. Q7. How about the products quality? A: The products will be strictly inspected before shipment, and we can accept any inspection as you required.
